These controllers are used to manage the current necessary to power animation actuators (motor, piston, lights, etc.) that work on any voltage.  The controllers work on 12 volts DC.  The relays operate in open or closed mode.  You can power any animation on or off with the flick of a switch.   Our proprietary system is constructed to be absolutely versatile! This unit is powered by a 12v DC power supply and relay-rated at 220 vac 10 amp.  You can wire it to control any AC prop!

The animation controllers come with 2 independent relays (NO & NC), so you can connect up to 2 different animations, for example, when you hit a target, you can have a blinking light while you are running a motor (or a pneumatic cylinder) at the same time, so you can have a very interactive game with great looks. Each relay can be program with 200 click and unlimited time.

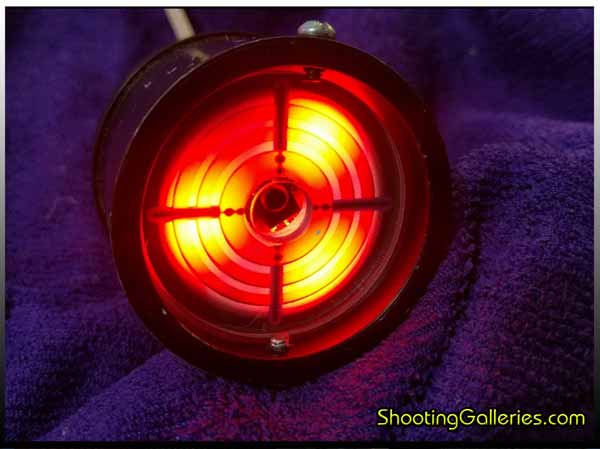

This animation controller can work on its own, and can be triggered with various mechanisms, such as push button, pressure mat, infrared system, etc. An on/off cycle sequence must be programmed on the relay cards so they reproduce said cycles when required.  This sequence is recorded through a pressure button and there are three ways to reproduce it.  The first is by pressing the PLAY button on the top of the animation controller and the second is closing the circuit with 2 wires from the animation controller to the push button, infrared sensor, pressure mat, or any other mechanism you may use, and the third one (in case you have one of our shooting gallery systems) is to receive a command from the target when the infrared signal is detected at the bull’s-eye associated with the animation controller. Our SMART STAR system a system that has been shipped around the world and installed by maintenance staffs without formal training using only a flat screwdriver.

Our sound card come equipped with its own STEREO amplifier, with enough power to boost your gallery and make sound great, the cards can hold up to 250 different sounds and up to 20 hrs of continuous play. These MP3 file will reproduce one by one every time the target is hit, it just need a simple SD card with the MP3 files you want inserted in them, yes, you can record your own MP3 sounds, just place them on the card and you are ready to go. Our MP3 sound card can be activated two different ways, you can decide to which animation you want the sound to be, and a simple 2 wire connection is required from the target controller to the sound board, so each time the target is hit, it will reproduce a sound an then stop until the target is hit again. the other way is activated with a switch, pressure mat, sensor, etc. Oh, Did i mention it is STEREO? even most of the sounds in a game can be simple ones, you can play with your MP3 files and create amazing special effects by using both channels, for example, you can have a ricochet sound by putting one speaker on one side of the game for the shot hitting, and in another speaker in the other side with the bullet bouncing, or having a conversation between two characters, animales moving… you imagination is the limit!

This module controls the infrared area that is used to shoot bull’s-eyes (targets).  One rifle controller goes in each rifle station within the game.  This part also contains the displays that show the high score, score for the previous game, available credits, and shots left in the current game. The rifle controller also includes an audio card and can be connected to the ticket redemption system, adjustable to client needs.

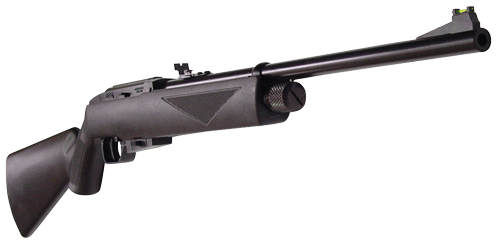

Each rifle “shoots” an infrared beam, the IR LED that sends light data, and inside contains an electromechanical solenoid to reproduce the recoil sensation, YES, you actually can feel each shot!
